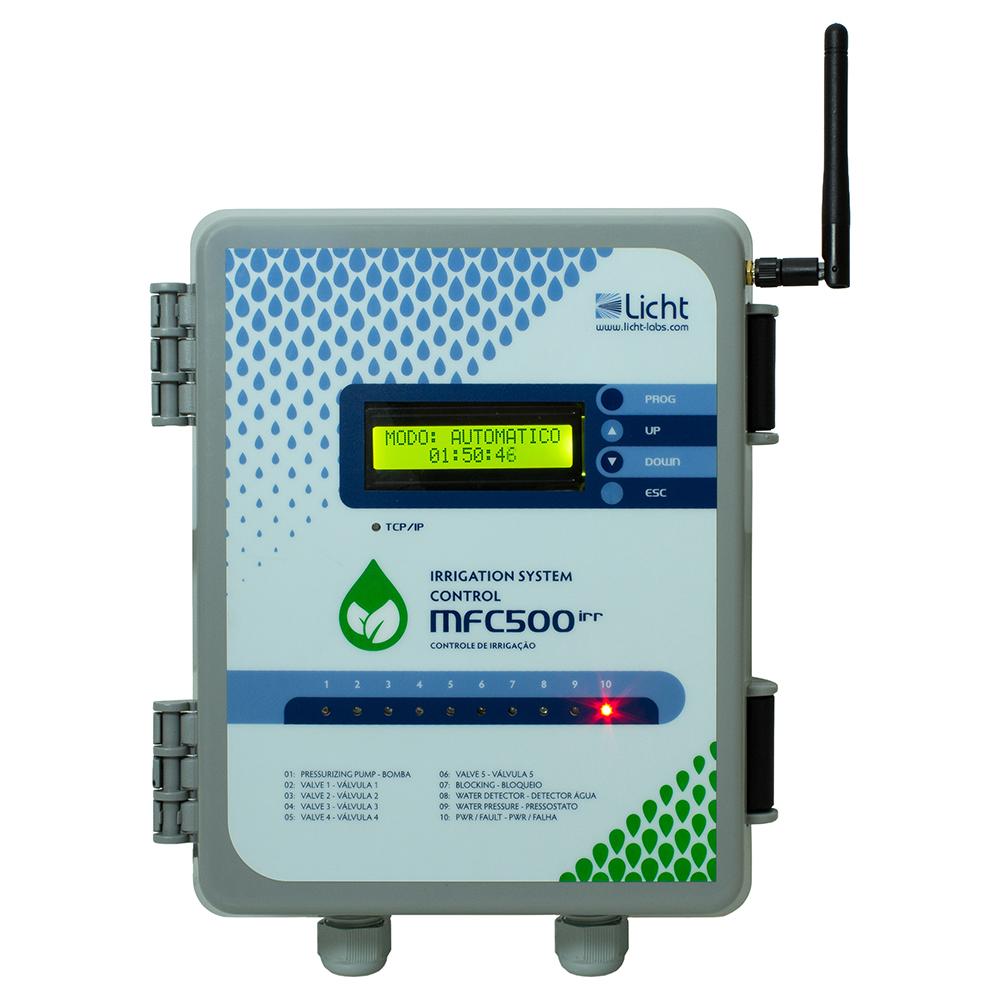

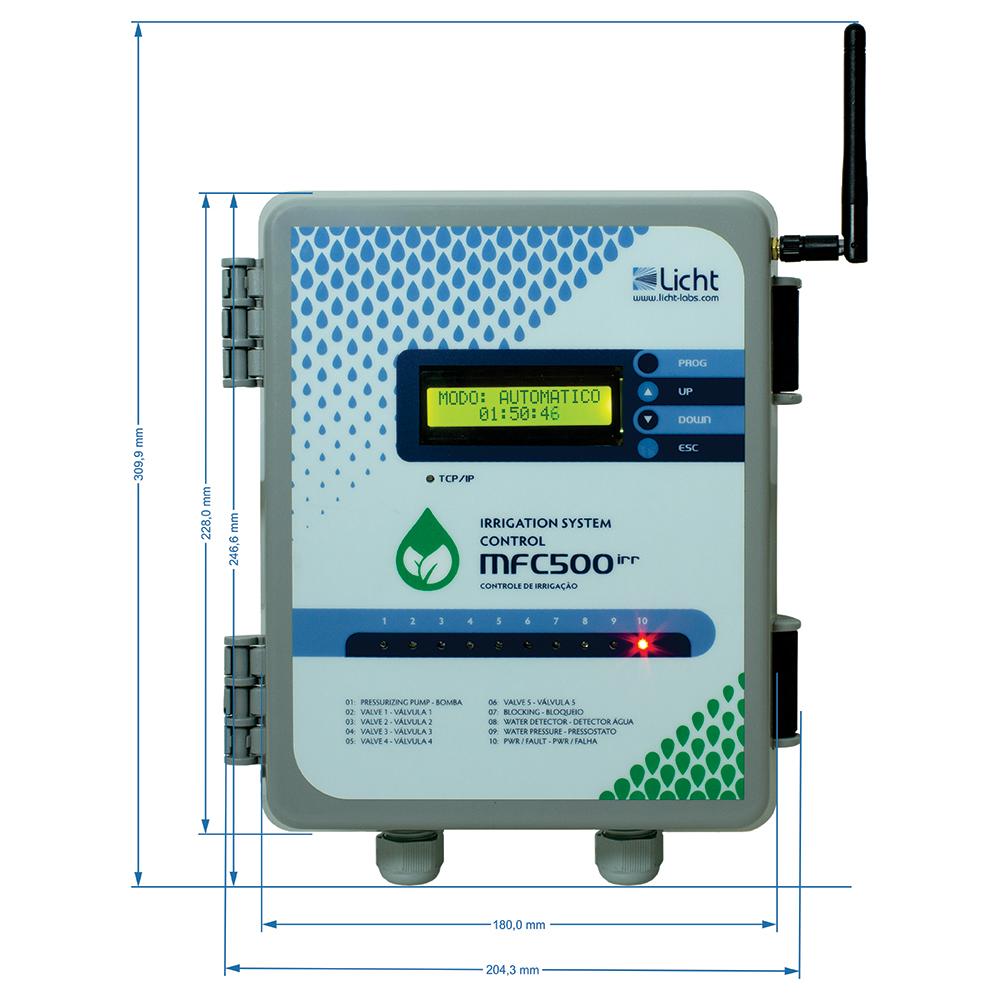

MFC500 IRR: Irrigation Controller

Designed with reliability, sustainability, and water savings in mind, the controller ensures that each area receives exactly the required amount of water at the scheduled time, helping preserve plant health and protect the integrity of the entire system.

The irrigation system devices operate with maximum efficiency and safety under the supervision of redundant protection features that work together in a complementary way. The unit continuously monitors operating conditions and triggers alarms in unusual situations such as water shortage, low or high pressure, and excessive consumption.

In the event of water shortage, for example, the system is automatically locked to protect the pressure unit from damage that could become permanent. This protection package was developed to increase component durability and ensure reliable irrigation over time.

The operating history is stored in non-volatile memory, making it possible to track system performance throughout irrigation cycles. With this information, the user can identify deviations, anticipate preventive maintenance, and detect possible leaks, since a properly adjusted system should maintain a consistent water consumption pattern.

The result is a more efficient, safer, and more predictable system, with irrigation always available at the right time.

KEY FEATURES

1) Controls up to 5 irrigation lines: Independent scheduling for each zone.

2) Built-in real-time clock: Allows irrigation cycles to run according to a predefined schedule, while storing events and operating history in non-volatile memory with date and time stamps.

3) Intuitive interface:

• Clear LCD display and simple navigation buttons, making setup and operation easy even for users with no previous experience.
• USB port for control and programming.
• TCP/IP port for configuration via Windows software on a PC.
• Optional Wi-Fi module.

4) Flexible programming:

• 5 independent programs, each with its own start time and irrigation duration, allowing customized schedules for different zones or program types.
• Manual or automatic system control.

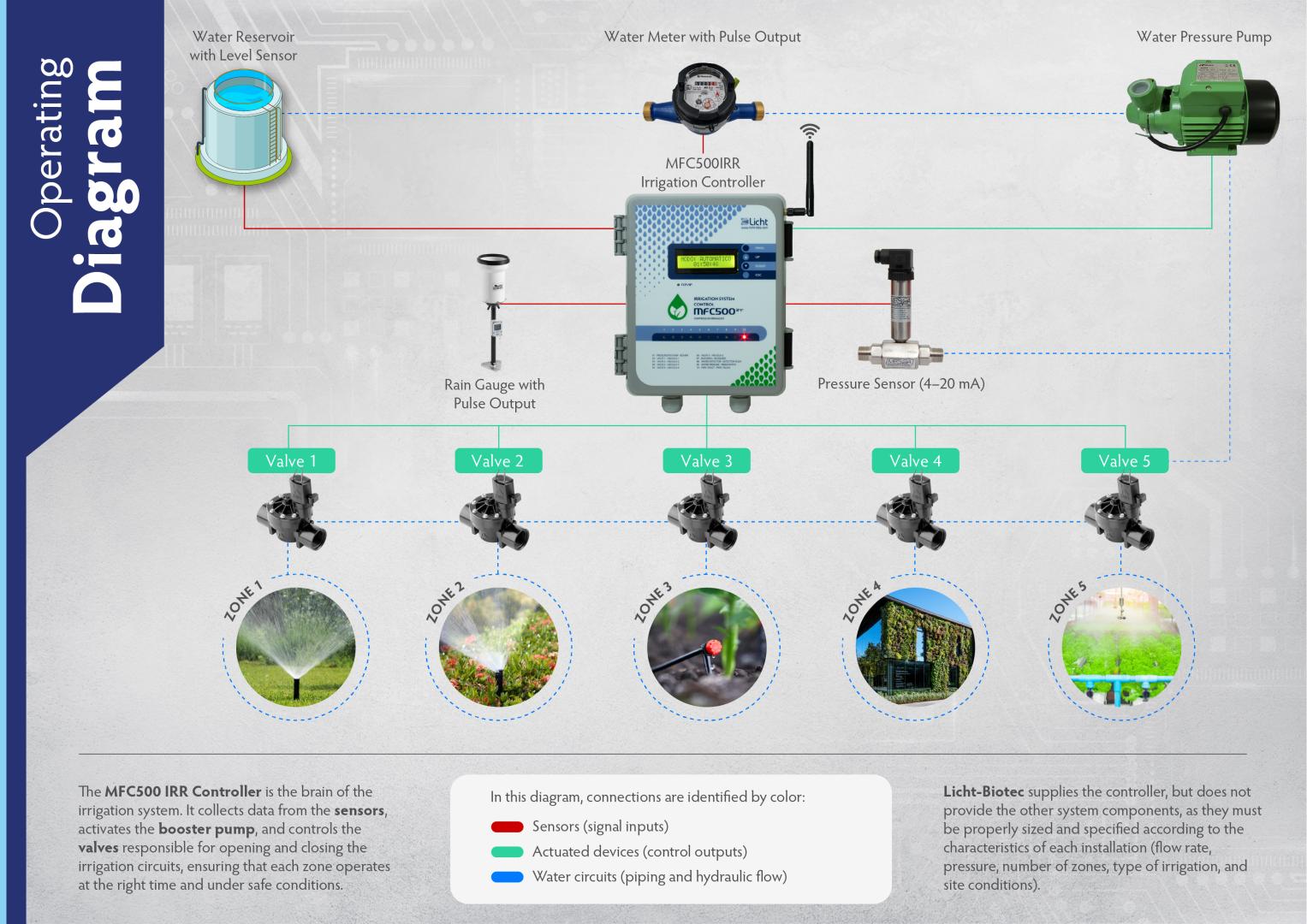

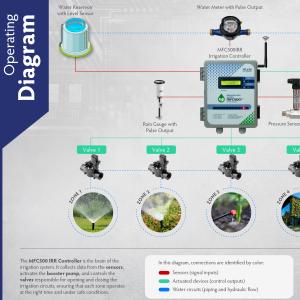

5) Compatibility with sensors, valves, and pressure units: Compatible with commercially available valves, pressure units, pressure sensors, moisture sensors, water level sensors, and rainfall sensors.

6) Memory and data logging: Features internal memory, expandable via SD card, for recording important system information such as water consumption, rainfall data, dates, times, and more.
